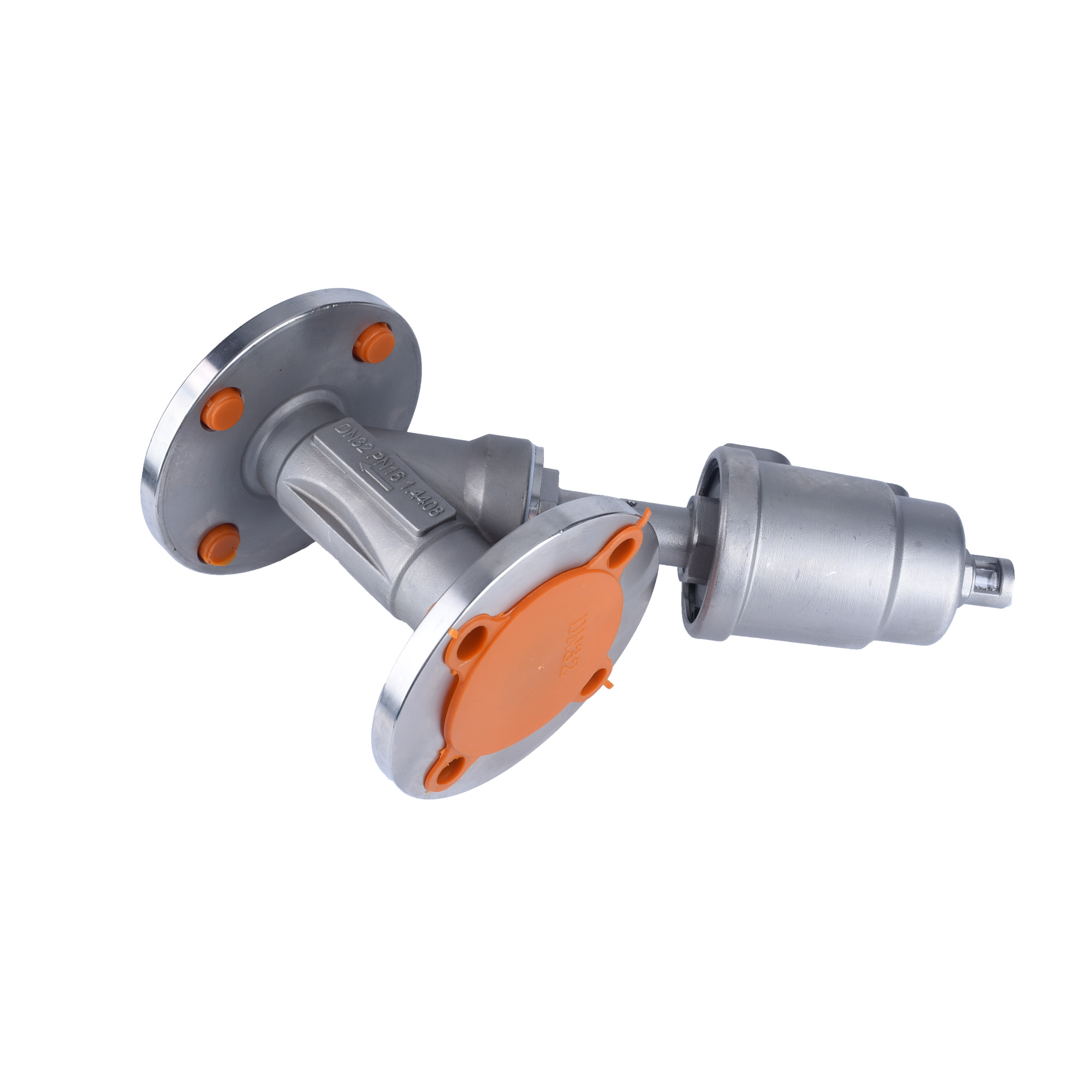

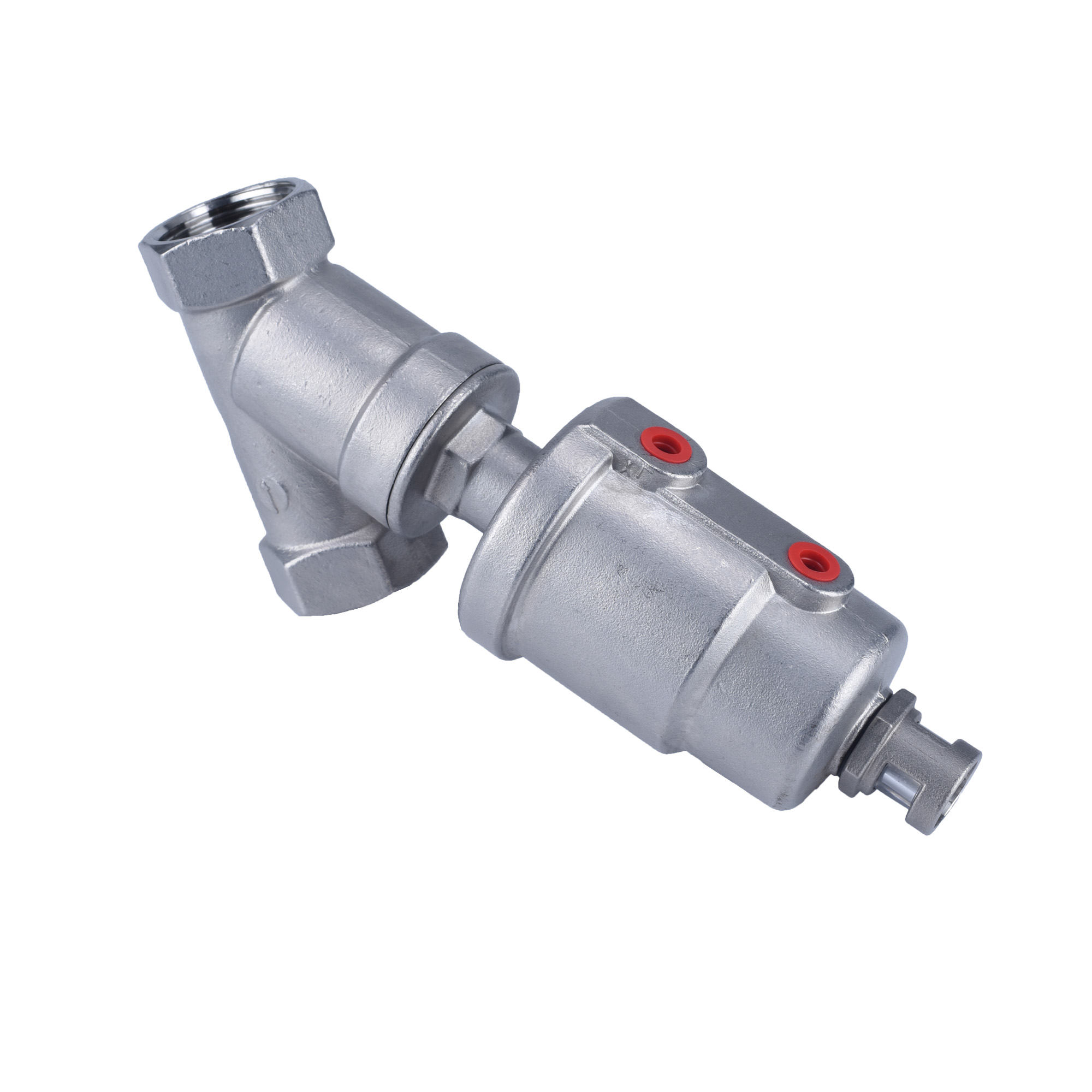

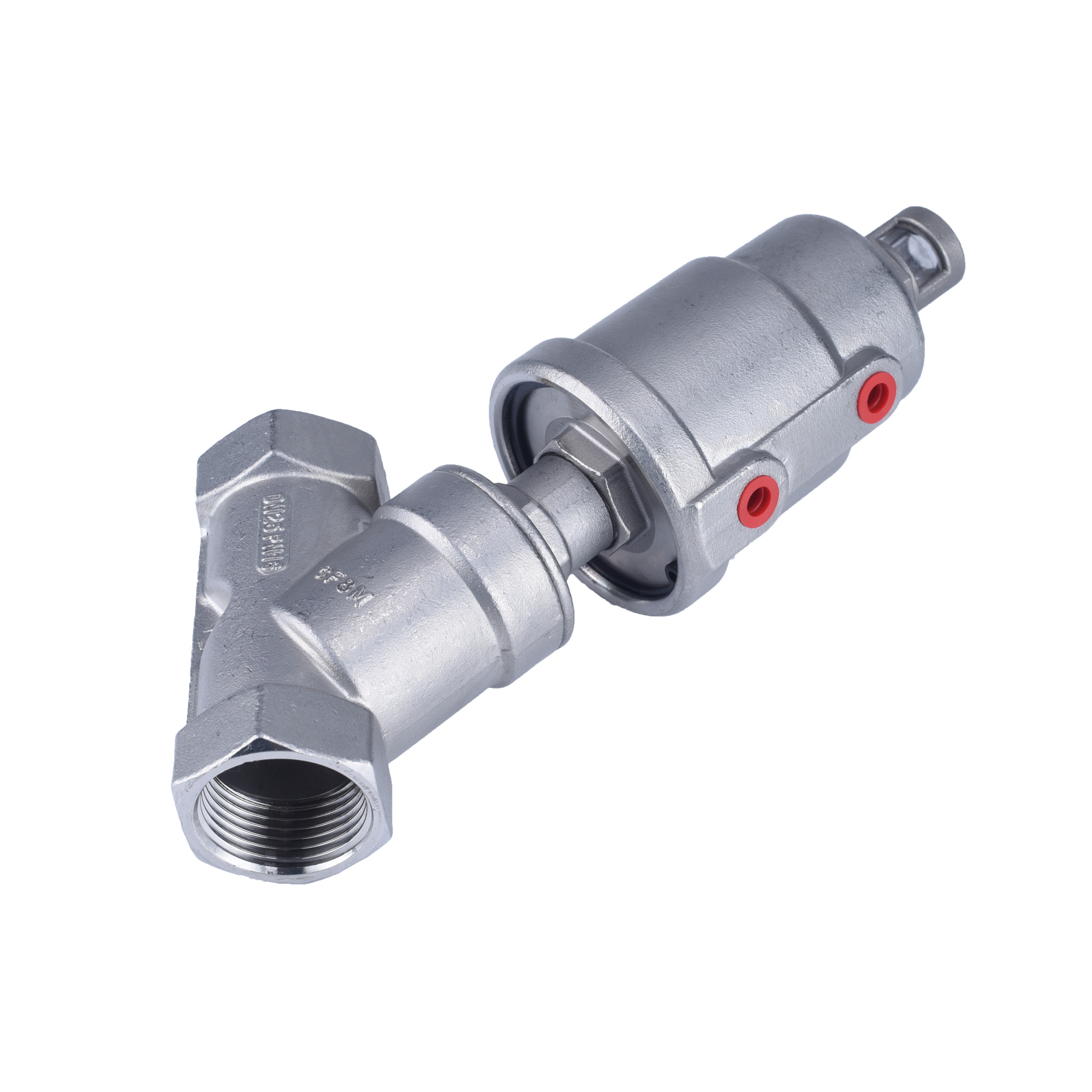

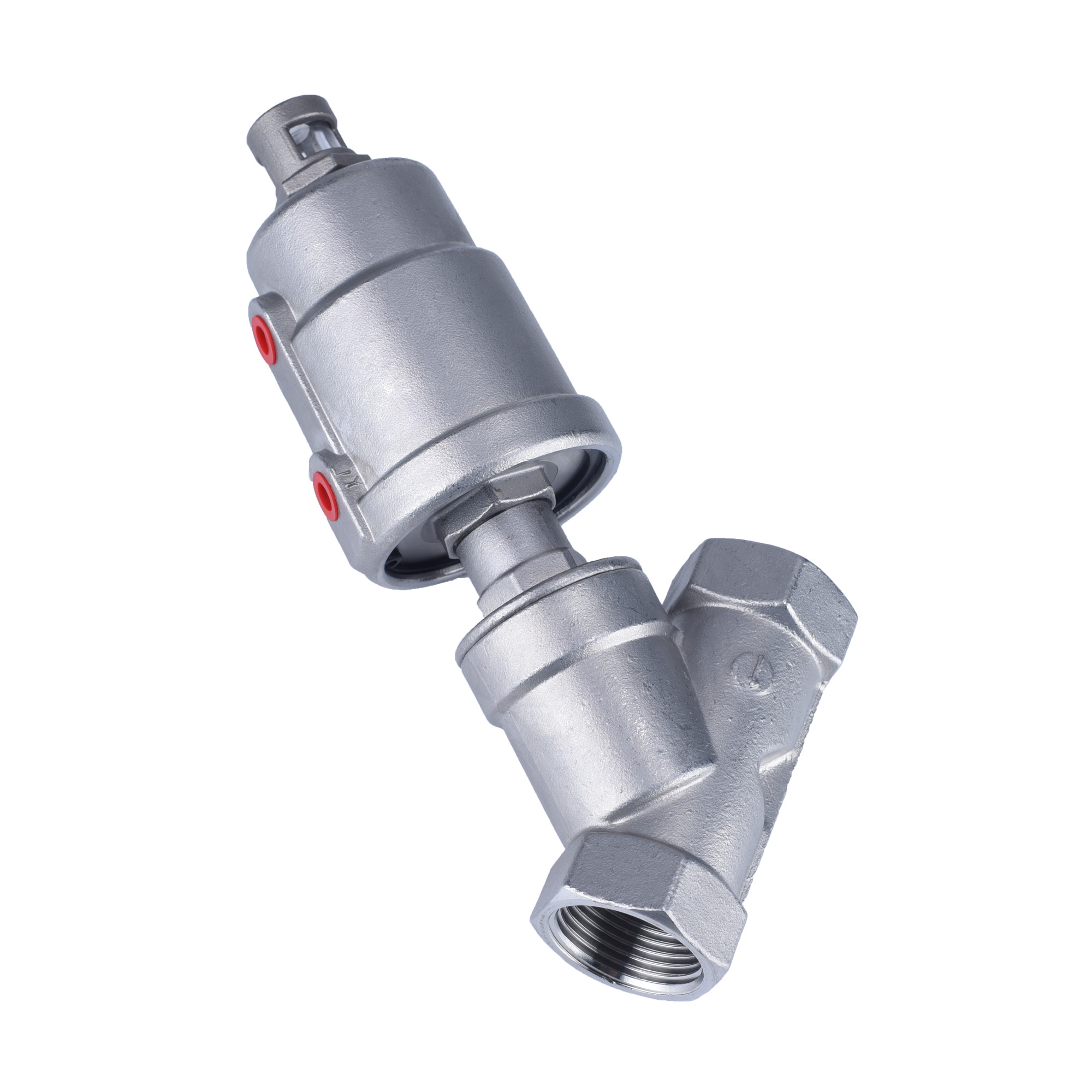

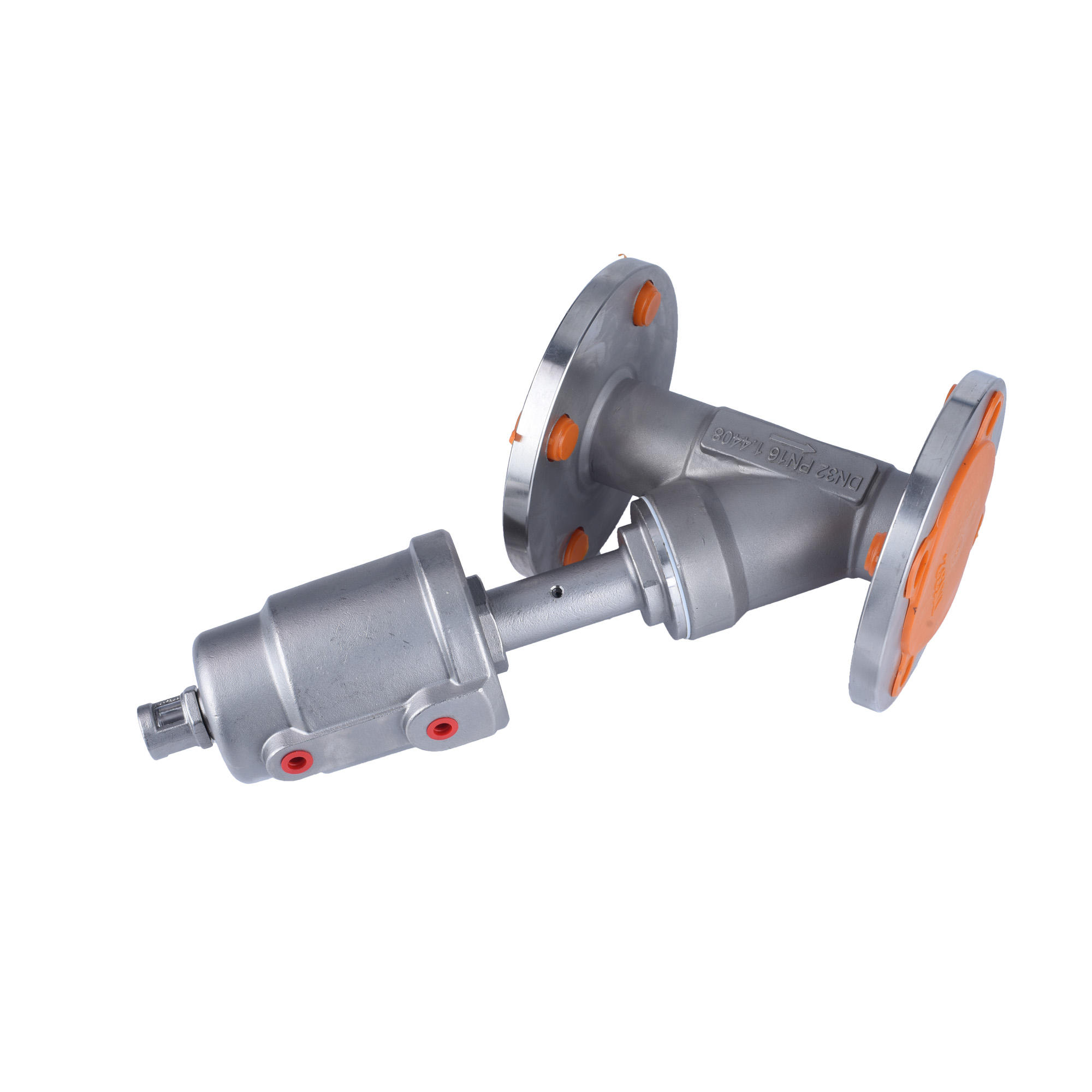

Pneumatic Angle Seat Valve

Availability:
Quantity:

PDF Export

  • HEARKEN

Technical Parameters

Medium temperature:-20~+180

Ambient temperature:-20~+60

Nominal pressure:1.6Mpa

Control gas,gas,air

Air pressure:0.3~0.8Mpa

Specification:DN15-DN100

The valve body material:304/316

Seat material:PTFE

Stem material:304

Sealing ring material:NBR

90-1 angle seat valve90-2 angle seat

Model

L

T

A

H

D

E

Actuator

DN15

68

11

133

126

1/2"

62

ᴓ50

DN20

75

14

137

131

3/4"

62

ᴓ50

DN25

90

15

174

165

1"

62

ᴓ50

DN32

115

17.5

188

175

1 1/4"

76

ᴓ63

DN40

115

17.5

190

178

1 1/2"

76

ᴓ63

DN50

135

20

215

225

2"

76

ᴓ63

DN65

185

30

252

280

2 1/2"

96

ᴓ80

DN80

208

33

280

320

3"

114

ᴓ100

DN100

235

33

300

320

4"

114

ᴓ100

Model

L

T

f

D

C

B

A

H

E

N-ᴓd

Actuator

DN15

120

14

2

95

65

40

185

145

62

4-ᴓ14

ᴓ50

DN20

130

14

2

105

75

50

188

155

62

4-ᴓ14

ᴓ50

DN25

140

14A16

2

115

85

60

208

165

62

4-ᴓ14

ᴓ63

DN32

150

16

2

135

100

70

225

195

76

4-ᴓ18

ᴓ63

DN40

180

16

2

145

110

80

240

205

76

4-ᴓ18

ᴓ63

DN50

195

16

2

160

125

92

265

228

76

4-ᴓ18

ᴓ80

DN65

230

18

2

185

145

115

290

264

96

4-ᴓ18

ᴓ80

DN80

250

18

2

195

160

130

330

300

114

8-ᴓ18

ᴓ100

DN100

295

18

2

215

180

150

350

320

114

8-ᴓ18

ᴓ100
