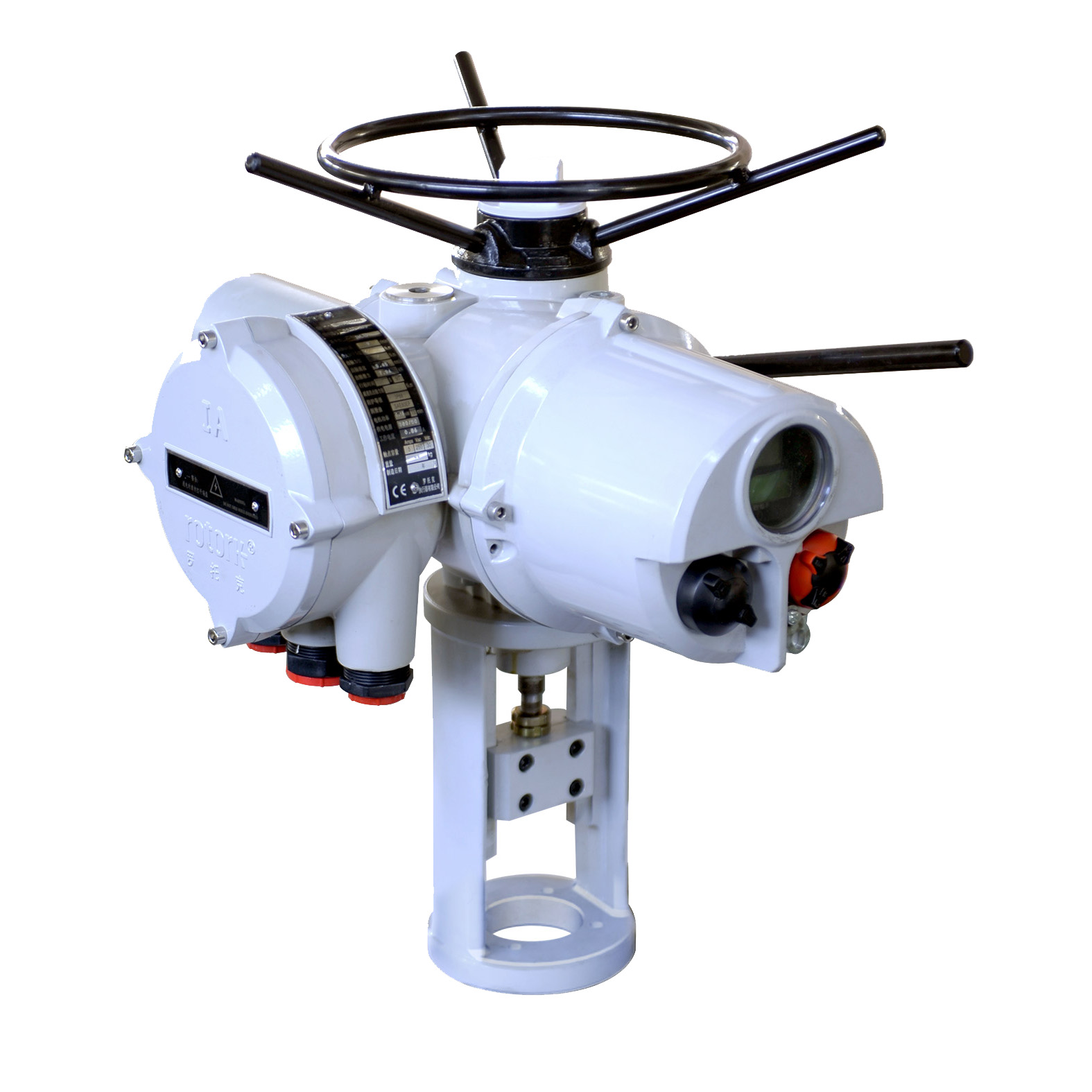

HML Series
HEARKEN
HML2021001
Torque Protection
A sensor serve as overload protection for the entire valve travel, and you can setting a different torque volume between 40~120% of rated torque.
Limit Protection
Automatic Phase Ratation CorrectionActuator monitor the phases and run in the correct direction regardless of the sequence of power supply connection that is realized through a phase rotation correction Boolean logical calculation.
Without this function it may damage the valve in unconsciously.
Instantaneous Reversal ProtectionThe motor control logic automatically add a time delay in switching the motor when the actuator is ordered to reverse direction instantaneously，this function can preventing unnecessary wear to the valve stems and gearboxes.
Phase Failure ProtectionActuator real time monitors all three phases of the power supply during operation to prevent lose phase action. (3-phase power supply only)
Valve Jammed ProtectionElectronic latching inhibits the actuato torque protection function around 5 seconds and allows the motor to generate 2 times rated torque to unseat the stuck valves while starting operation signal is enabled, if the actuator in the above-mentioned second time have no movement, control circuit will cut off the power supply of the motor to prevent the further valve damage or motor burm out.
Motor Thermal ProtectionTwo thermostats are embedded in the windings for provide thermal-protection by de-energised motor in the event of motor over the maximum temperature.
Electric ProtectionThe input and output signal channel of circuits are designed as photoelectric isolate mode.
Main Technical Characteristics●The input voltage range:single Phase 50/60Hz:110,120,220,230,240V 3-Phase 50/60Hz:200,230,240,380,400.415.440. 460,480V
●Using the absolute encoder, the valve position never lost.The absolute encoder can ensure the high precision, zero wear, long life, strong anti-interference, no battery support.
●Optional all electronic torque detection technology to realize the torque continuous measurement, the over torque value can be adjusted without secondary calibration, it is unnecessary to consider mechanical wear.
●Perfect bus supporting plan: Profibus dp. Modbus, FF, Hart, Device Net five kind of bus available.
●Unique double speed control mechanism, can make the actuators in work process avoid causing fluid surge effect.
●Infrared setting device and knob (magnetic isolation technique) all can set working parameters, convenient and practical, truly realize free open cover.
●Perfect level 3 password protection, but to different customers or operator separate authorization, prevent fault parameters set to actuator fault phenomenon.
●Provide five field programmable non-hold type relay feedback, provide an alarm non-hold type relay feedback, extensible four hold-type relay feedback.
●Input /output signal channel have been photoelectric isolation (can bear 2000 V surge voltage).
●Operating temperature range: -30C -+70 C.
●Use humidity range or less 90% RH, non-condensing around, do not contain strongcorrosive, fammable and explosive gas or dust.
Type of Connection Between Electric Actuator and Valve
Model | Output speed (rpm) | 18 | 24 | 36 | 48 | 72 |
HML03 | Driving stem diameter/thread pitch mm | 26/3 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F10 | |||||
Modulation stroke KN | 6.50 | 6.50 | 5.42 | 5.42 | ||
Linear soeed mm/sec | 0.9 | 1.2 | 1.8 | 2.4 | ||
Rated close stroke KN | 13.00 | 13.00 | 11.38 | 10.84 | ||
HML05 | Driving stem diameter/thread pitch mm | 26/3 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F10 | |||||
Modulation stroke KN | 10.84 | 9.76 | 8.13 | 7.05 | ||
Linear soeed mm/sec | 0.9 | 1.2 | 1.8 | 2.4 | ||
Rated close stroke KN | 22.76 | 20.60 | 17.89 | 14.63 | ||
HML10 | Driving stem diameter/thread pitch mm | 32/6 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F14 | |||||
Modulation stroke KN | 15.37 | 12.29 | 9.99 | 9.60 | 6.91 | |
Linear soeed mm/sec | 1.8 | 2.4 | 3.6 | 4.8 | 7.2 | |
Rated close stroke KN | 32.65 | 29.58 | 22.28 | 21.19 | 14.80 | |
HML10 | Driving stem diameter/thread pitch mm | 38/14 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F14 | |||||
Modulation stroke KN | 9.34 | 7.47 | 6.07 | 5.84 | 4.20 | |
Linear soeed mm/sec | 4.2 | 5.6 | 8.4 | 11.2 | 16.8 | |
Rated close stroke KN | 19.85 | 17.98 | 13.54 | 12.84 | 8.87 | |
HML20 | Driving stem diameter/thread pitch mm | 32/6 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F14 | |||||
Modulation stroke KN | 26.89 | 26.89 | 21.13 | 16.13 | 16.13 | |
Linear soeed mm/sec | 1.8 | 2.4 | 3.6 | 4.8 | 7.2 | |
Rated close stroke KN | 51.09 | 51.09 | 41.10 | 34.19 | 34.19 | |
HML20 | Driving stem diameter/thread pitch mm | 38/14 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F14 | |||||
Modulation stroke KN | 16.35 | 16.34 | 12.8 | 9.81 | 9.81 | |
Linear soeed mm/sec | 4.2 | 5.6 | 8.4 | 11.2 | 16.8 | |
Rated close stroke KN | 31.06 | 31.06 | 24.99 | 20.78 | 20.78 |
HML Series Linear Actuator Performance Table (3-Phase)
Model | Output speed (rpm) | 18 | 24 | 36 | 48 | 72 |
HML03 | Driving stem diameter/thread pitch mm | 26/3 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F10 | |||||
Modulation stroke KN | 9.20 | 9.20 | 8.45 | 7.37 | ||
Linear soeed mm/sec | 0.9 | 1.2 | 1.8 | 2.4 | ||
Rated close stroke KN | 18.43 | 18.43 | 16.26 | 14.63 | ||
HML05 | Driving stem diameter/thread pitch mm | 26/3 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F10 | |||||
Modulation stroke KN | 18.43 | 18.43 | 16.26 | 14.63 | ||
Linear soeed mm/sec | 0.9 | 1.2 | 1.8 | 2.4 | ||
Rated close stroke KN | 33.06 | 29.27 | 29.27 | 26.02 | ||
HML10 | Driving stem diameter/thread pitch mm | 32/6 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F14 | |||||
Modulation stroke KN | 31.15 | 31.15 | 26.12 | 20.74 | 18.06 | |
Linear soeed mm/sec | 1.8 | 2.4 | 3.6 | 4.8 | 7.2 | |
Rated close stroke KN | 46.87 | 41.87 | 31.15 | 26.12 | 20.74 | |
HML10 | Driving stem diameter/thread pitch mm | 38/14 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F14 | |||||
Modulation stroke KN | 18.91 | 18.91 | 15.88 | 12.61 | 10.97 | |
Linear soeed mm/sec | 4.2 | 5.6 | 8.4 | 11.2 | 16.8 | |
Rated close stroke KN | 28.49 | 25.45 | 18.91 | 15.88 | 12.61 | |
HML20 | Driving stem diameter/thread pitch mm | 32/6 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F14 | |||||
Modulation stroke KN | 58.39 | 58.39 | 49.56 | 39.18 | 39.18 | |
Linear soeed mm/sec | 1.8 | 2.4 | 3.6 | 4.8 | 7.2 | |
Rated close stroke KN | 78.37 | 78.37 | 62.62 | 52.25 | 52.25 | |
HML20 | Driving stem diameter/thread pitch mm | 38/14 | ||||
Max linear travel mm | 115 | |||||
Flange type (ISO 5210) | F14 | |||||
Modulation stroke KN | 35.49 | 35.49 | 30.12 | 23.82 | 23.82 | |
Linear soeed mm/sec | 4.2 | 5.6 | 8.4 | 11.2 | 16.8 | |
Rated close stroke KN | 47.64 | 47.64 | 38.06 | 31.76 | 31.76 |
Testing For All Actuators
All actuators manufactured by HEARKEN are individually tested. Testing is carried out to check the leakage in both internal and external. The angle of rotation and Torque values. All bodies are stamped with year, month of production, size and serial number.
