HEA Series
HEARKEN
HML2021002
Description

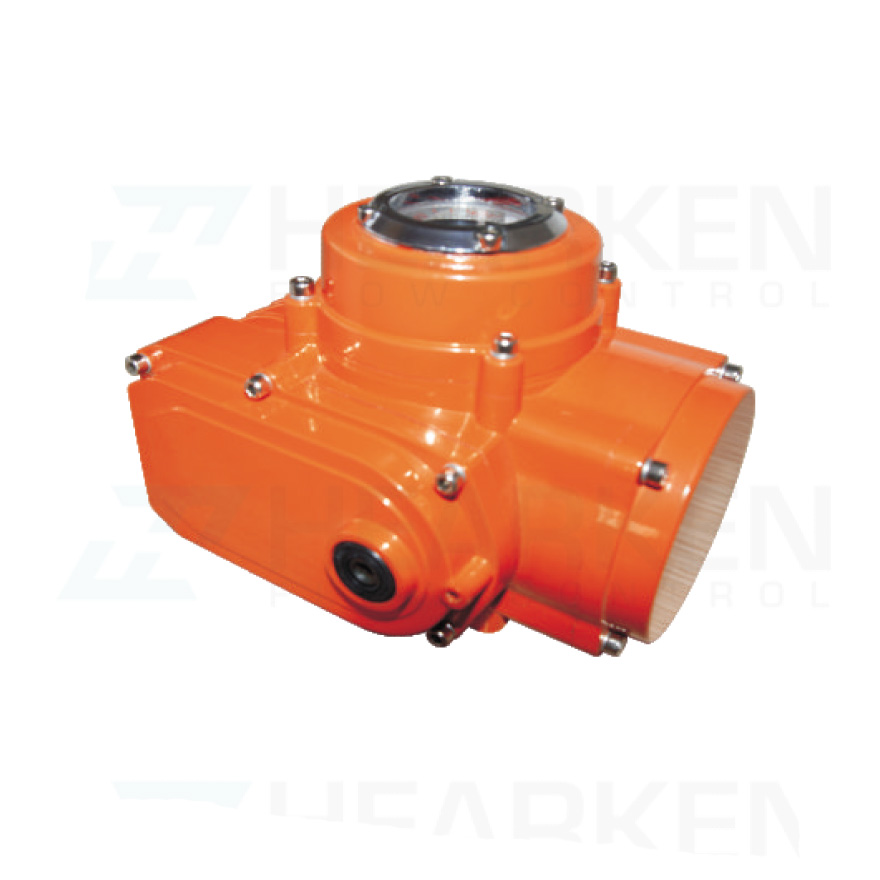

IP68 Water-proof Valve Electric Actuator are used to control 0~90° rotation valve andother similar products, such as butterfly valve, ball valve, throttle, plug valves, louver valve, etc. It uses AC415V,380V,240V.110V,DC12V,24V and 220V voltage to be the driving source ,and the actuator can be reset itself (with power down reset function ),4-20mA current signal or 0-10VDC voltage signal to be the controling signal valve to the required position, so that realize the automation control.The biggest output torgue is 6000N.m.
Main Product Features
Petroleum chemical industry, electric power,metallurgy. pharmaceutical, papermaking,energy, water treatment, ship,textile, food processing. building automation and other fields.
Performance FeaturesThe IP68 Electric actuator can work under the depth of 9 meters water. Protection class can reach IP68.The diving series electric actuator is one new research and development product which specialized for outdoor environment. Which not only resists the outdoor larger temperature difference,also with strong ability of moisture proof and waterproof flooded, and can continuous work under the depth 10 meters water, the protection class reach IP68.Even more effectively, prevent water into the connection port of the actuator,avoiding the damage of internal components, We hereby apply for the patent
Material and Parts
No. | Name | Material | Qty | No. | Name | Material | Qty | |
1 | Actuator Body | Aluminum Alloy | 1 | 6 | Waterproof Glands | SUS304 | 2 | |
2 | Motor Cover | 40Cr Steel | 1 | 7 | Waterproof Lens | PMMA Glass | 1 | |
3 | Motor Shaft | 40Cr Nickel Plated | 1 | 8 | Lens Cover | Aluminum Alloy | 1 | |
4 | Side Cover | Aluminum Alloy | 1 | 9 | Upper Cover | Aluminum Alloy | 1 | |
5 | Back Cover | Aluminum Alloy | 1 | 10 | O-rings | NBR |
Technical Parameter and Specifications (On/off or modulating version)
Parameter | Output | Power | Motor | Current | Running | Overal | Connection | |
Square | Round | |||||||
HEA005D | 50 | DC24V | 13 | 1.28 | 30S (5-10S speed up,35-60S slow down) (Optional) | 3 | 11x11 | ᴓ13 |
AC24V | 10 | 1.5 | 14x14 | |||||
AC110V | 10 | 0.24 | ||||||
AC220V | 10 | 0.16 | ||||||
AC380V | 6 | 0.07 | ||||||
HEA010D | 100 | DC24V | 25 | 2.03 | 30S (5-10S speed up,35-60S slow down) (Optional) | 5 | 17x17 | ᴓ16.1 |
AC24V | 25 | 2.12 | ||||||
AC110V | 25 | 0.57 | ||||||
AC220V | 25 | 0.35 | ||||||
AC380V | 45 | 0.1 | ||||||
HEA016D | 160 | DC24V | 40 | 3 | 30S (5-10S speed up,35-60S slow down) (Optional) | 5.2 | 17x17 | ᴓ19.1 |
AC24V | 40 | 0.63 | ||||||
AC220V | 40 | 0.35 | ||||||
AC380V | 30 | 0.19 | ||||||
HEA020D | 200 | DC24V | 35 | 3.57 | 30S (5-10S speed up,35-60S slow down) (Optional) | 5.5 | 22x22 | ᴓ22.3 |
AC24V | 40 | 3.65 | ||||||
AC220V | 40 | 0.37 | ||||||
AC380V | 30 | 0.16 | ||||||
HEA040D | 400 | DC24V | 70 | 5.13 | 30S (10S speed up,35-60S slow down) (Optional) | 9.5 | 22x22 | ᴓ22.3 |
AC24V | 90 | 6.8 | ||||||
AC110V | 90 | 1.12 | ||||||
AC220V | 90 | 0.57 | ||||||
AC380V | 40 | 0.29 | ||||||
HEA060D | 600 | DC24V | 70 | 6.04 | 45S (15S speed up,60S slow down) (Optional) | 10 | 22x22 | ᴓ28.7 |
AC24V | 90 | 6.8 | ||||||
AC110V | 90 | 1.18 | ||||||
AC220V | 90 | 0.6 | ||||||
AC380V | 40 | 0.29 | ||||||
HEA010D | 1000 | DC24V | 100 | 8.5 | 50S (30S speed up,60S slow down) (Optional) | 11.2 | 27x27 | ᴓ32.0 |
AC24V | 100 | 9 | ||||||
AC110V | 120 | 1.93 | ||||||
AC220V | 120 | 0.94 | ||||||
AC380V | 90 | 0.44 | 31x31 | |||||
HEA020D | 2000 | AC380V | 100 | 9 | 50S (30S speed up,60S slow down) (Optional) | 11.8 | 27x27 | ᴓ32.0 |
Testing For All Actuators
All actuators manufactured by HEARKEN are individually tested. Testing is carried out to check the leakage in both internal and external. The angle of rotation and Torque values. All bodies are stamped with year, month of production, size and serial number.
